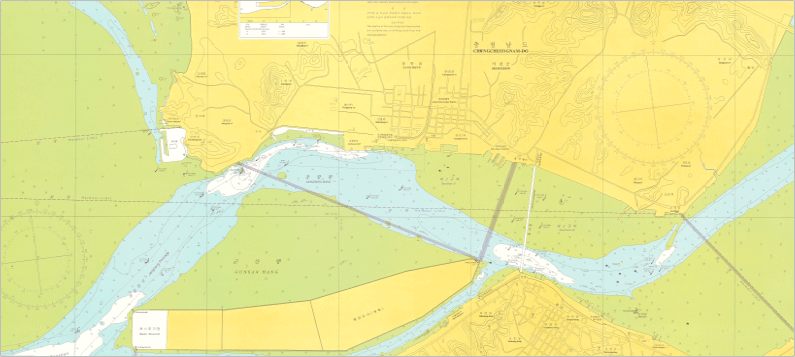

JANGHANG
JANGHANG
| WIDTH OF BERTH | 38 M |
| MAX. ALLOWABLE VESSEL BREADTH : 45 M | |
| MAX. ALLOWAVLE VESSEL S.DWT : 150,000MT | |
| MIN. DEPTH AT BERTH : 21 M | |
| MIN. DEPTH IN APPROACHES : 15.4 M | |
| SEA WATER DENSITY : 1.025 | |
| OUT REACH OF CRANE FROM FENDER EDGE : 45 M | |
| NUMBER AND CAPACITY OF UNLOADER : 1,500MT/HR x 2 EA | |
| ACTUAL CAPACITY OF UNLOADER AND DISCHARGE RATE : 1,100MT/HR/ 1 EA | |
| EXPECTATION AVERAGE DISCHARGE RATE PER DAY : 30,000MT - 35,000MT/DAY | |
| ALLOWABLE TRAVEL DISTANCE OF UNLOADER : 185 M | |
| POSSIBLE TO BUNKER DURING DISCHARGE | |
| TO DIRECT BERTHING VESSEL HAVE TO ARRIVAL PSTN BEFORE 3 HRS ON THE LOW WATER SLACK TIDE DURING DAYLIGHT. | |
| UNBERTHABLE FOR THE VESSEL TO MAKE USE OF SLACK TIDE OF LW/HW DURING DAYLIGHT. |
